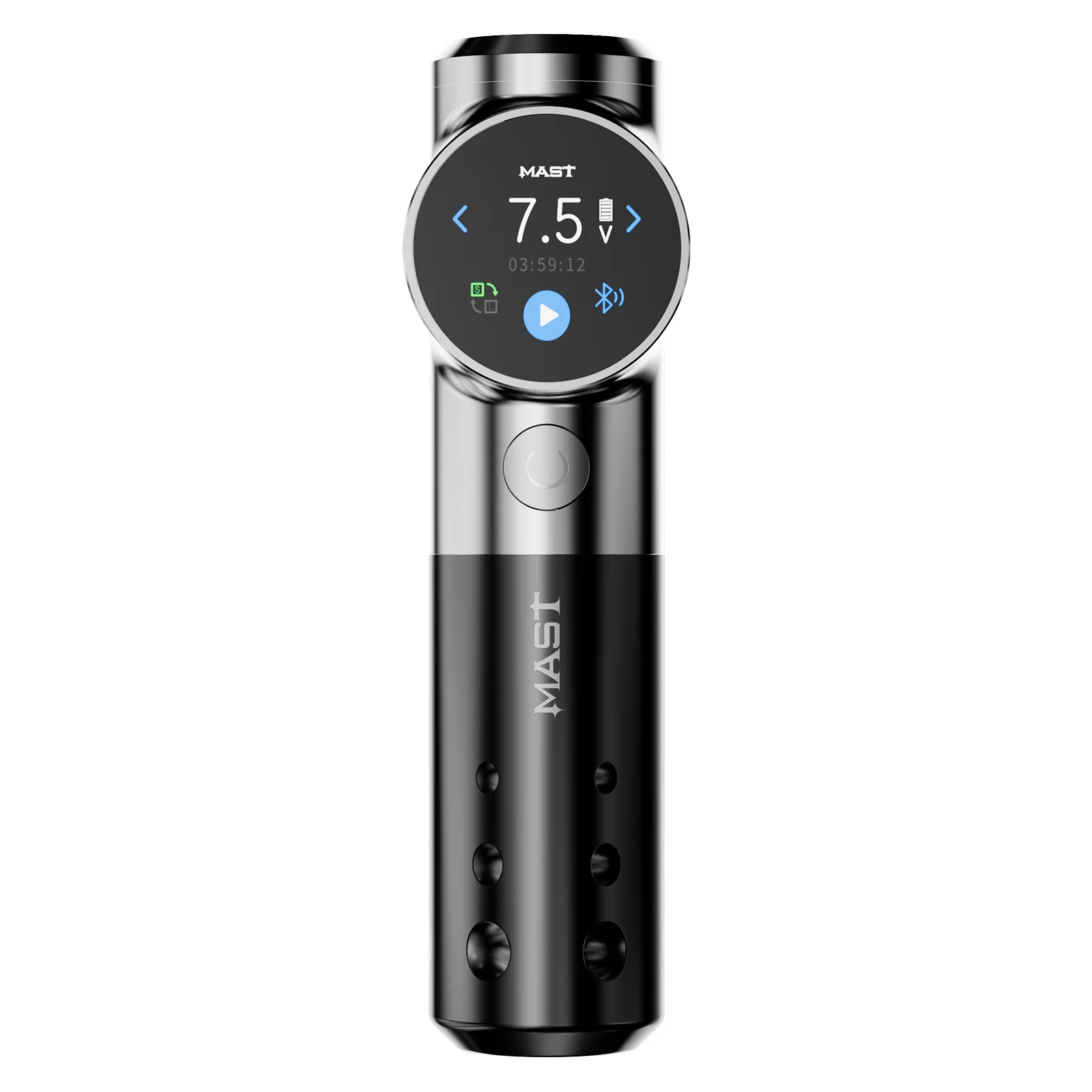

MAST Archer Ultra Smart Wireless Tattoo Machine Pen Bluetooth

* Super integrated structural design, multi-platform operation.
- Employs process of cutting internal components as a whole, eliminating parts and reducing errors and vibrations caused by component assembly.
- Enhances stability during high-intensity work, resulting in lower vibrations and quieter operation.

* Intelligent Interconnected, Multi-platform Operation
- MAST Archer ULTRA features complete fast smart wireless connectivity through Mast Bluetooth technology.
- The large screen smart power supply allows for clearer viewing of work data and enables interactive operation on any screen.
- Dragonhawk APP function also facilitates interconnected operation on mobile phones or tablets.

* MAST Mcore Motor System
- The innovative stacked design and upgraded circuit board structure of the latest MCore technology, maintain the most stable integrated structure of the archer ultra machine without sacrificing any power.
- Efficiency is exceptionally high, capable of coloring upon skin contact.

* High-capacity fast charging system
- Equipped with a built-in, ultra-large 2300mAh Mast custom lithium cobalt oxide battery, providing three times the lifespan of similar models.
- The fast charging system offers exceptional charging efficiency, enabling one hour of use with just 10 minutes of charging. With a full charge, it can sustain operation for over 6.5 hours.

* 4.5mm extra-large stroke
- The 4.5mm stroke brought by Mast technology enhances motor power conversion efficiency by 100%.
- Allowing each back-and-forth of the needle to carry more pigment. This results in higher color saturation.

* Integrated charging dock
- The charging dock crafted from precision-carved aluminum alloy material, provides wireless charging for both the power supply and pen machine simultaneously.
- Includes an additional USB charging port for charging more pens or smartphones.

Specification for Machine:

Weight: 217g
Diameter&Length: 32*142mm
Stroke: 4.5mm
Speed:12V/11500RPM
Output Voltage: 4V-12V
Working Time≥ 6.5hrs
Charging Time≤ lh20min
Battery Capacity: 2300mAh
Charging Interface: Magnetic Pogo Pin

Specification for Power:

Weight: 151g
Diameter&Length: 28*76mm
Output Voltage: 4V-12V
Working Time≥ 5hrs
Battery Capacity: 3300mAh
Charging Time≤ 3.5hrs
Charging Interface: Magnetic Pogo Pin

Specification for Charging Dock:

Weight: 183g
Diameter&Length: 16*76*187mm
Output Voltage: 4V-12V
Charging Time for power≤4hrs
Charging Time for Machine≤ lh20min
Charging Interface: Type-C
